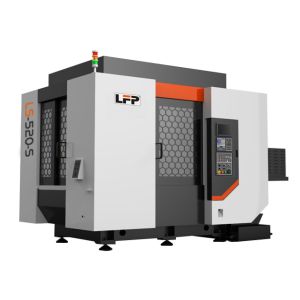

High Efficiency CNC Machining Center LS-520-S With Dual Pallet Changer
Force Precision LS-520-S Drilling & Milling Center: high precision, stability and efficiency for enhanced productivity. Dual-station pallet changer enables simultaneous X/Y/additional axis positioning and tool changing, cutting idle time for uninterrupted machining and higher efficiency. Self-developed servo tool magazine ensures fast, stable changes. Feed system with high-precision ball screws and bearings guarantees stability/accuracy; sealed digital AC servo motors deliver excellent dynamic performance. Ideal for batch and complex part machining, offering reliable precision manufacturing solutions.
Product specification
| Item | Unit | LS-520-S | ||
| Worktable size | mm | 650*1000(双面) | ||
| X/Y/Z three-axis stroke | mm | 520/340/350(21T) | 520/340/340(26T) | |
| Distance from spindle nose to worktable | mm | 205~555(21T)When the low-profile worktable is selected 255~605(21T) | 205~545(26T)When the low-profile worktable is selected 255~595 | |
| Worktable T-slot (number of slots - slot width * slot pitch) | mm | 3-14*100(two sides) | ||
| Spindle speed (optional) | r/min | 20-20000(24000) | ||
| Spindle taper | / | BT30 | ||
| X/Y/Z three-axis rapid traverse speed | m/min | 36/36/48 | ||
| Tool magazine capacity (optional) | 把 | 21(26) | ||
| Tool weight | kg | 3 | ||
| Tool length | mm | 200 | ||
Product Feature
1. The dual-station exchange worktable enables the positioning of the X/Y axes and the additional axis as well as the tool exchange to be carried out simultaneously, reducing non-processing time and achieving continuous processing without interruption.
2. The independently developed servo tool magazine ensures rapid and stable tool changes.
3. The feed system adopts high-precision ball screw support units and bearings to guarantee the stability and accuracy of the machine tool.
4. The high-reliability sealed digital AC servo motor ensures excellent dynamic performance.
Application
It is mainly targeted at the processing of small plate parts in industries such as the automotive industry, the motorcycle industry, hydraulic transmission, and optical products. Its main application is for drilling and tapping processes of parts made of non-ferrous metals, etc. It can perform boring and milling operations, especially for parts with short processing time, frequent clamping, and high requirements for production rhythm.
Machining workpiece
